| 特點 |
|
| 用途 |
|
如下表圖型所示：

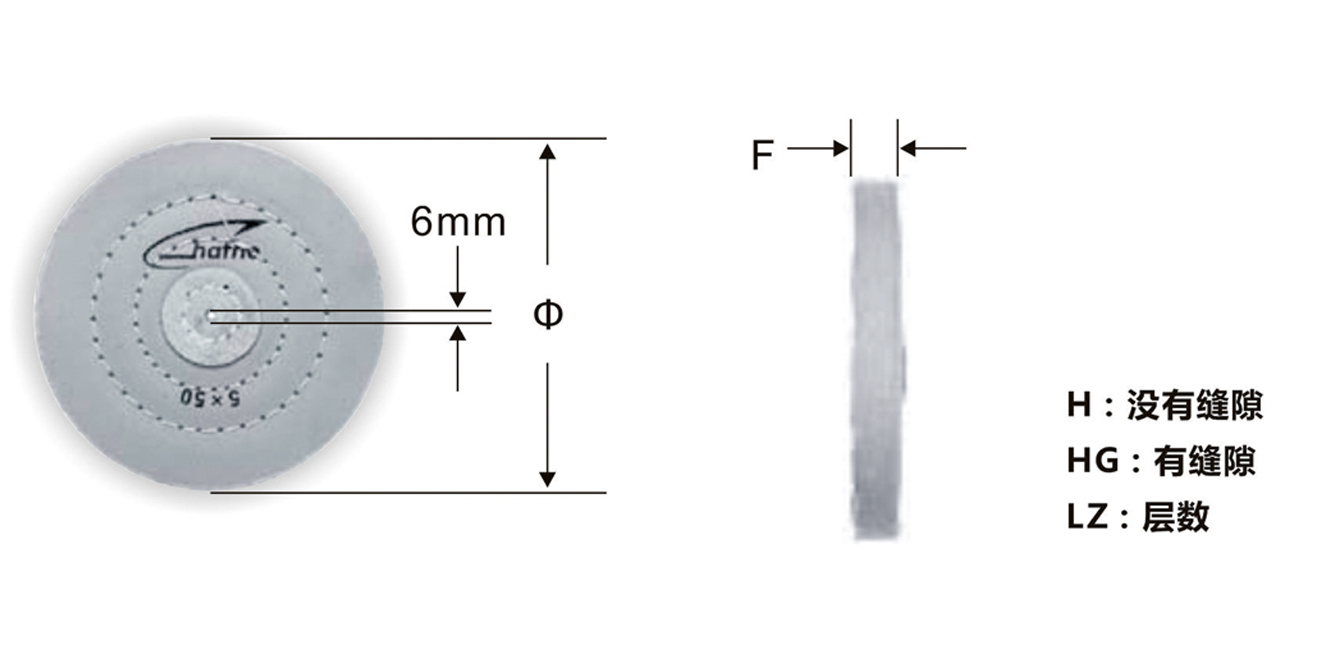

對應不同的材質、型號，其中φ為拋光布輪的直徑；F為布輪的厚度，LZ為層數。（尺寸單位mm）
| 外形樣式 | 材質 | 型號 | φ | F | LZ |
|---|---|---|---|---|---|
 |
粗棉布輪 | 661 4”×50H | 100 | 13 | 50 |
| 661 4”×50HG | 100 | 13 | 50 | ||
| 661 6”×50H | 150 | 13 | 50 | ||
| 661 6”×50HG | 150 | 13 | 50 | ||
 |

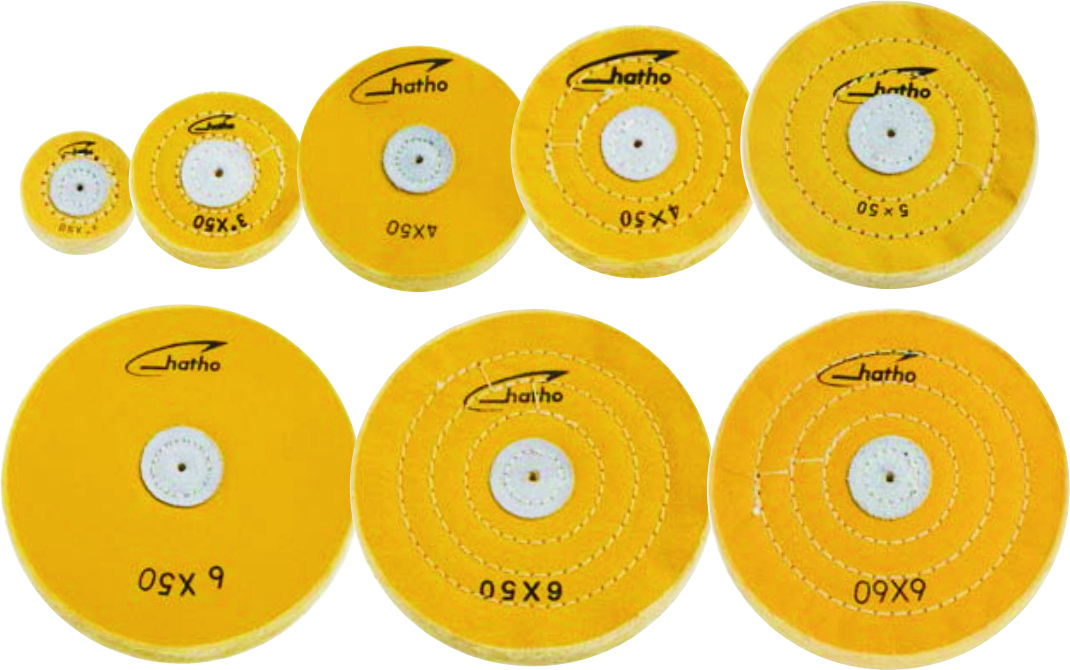

黃棉布輪 | 867 2”×50HG | 50 | 15 | 50 |
| 867 3”×50HG | 75 | 15 | 50 | ||
| 867 4”×50H | 100 | 15 | 50 | ||
| 867 4”×50HG | 100 | 15 | 50 | ||
| 867 5”×50HG | 125 | 15 | 50 | ||
| 867 6”×50H | 150 | 15 | 50 | ||
| 867 6”×50HG | 150 | 15 | 50 | ||
| 867 6”×60HG | 150 | 15 | 60 | ||
 |

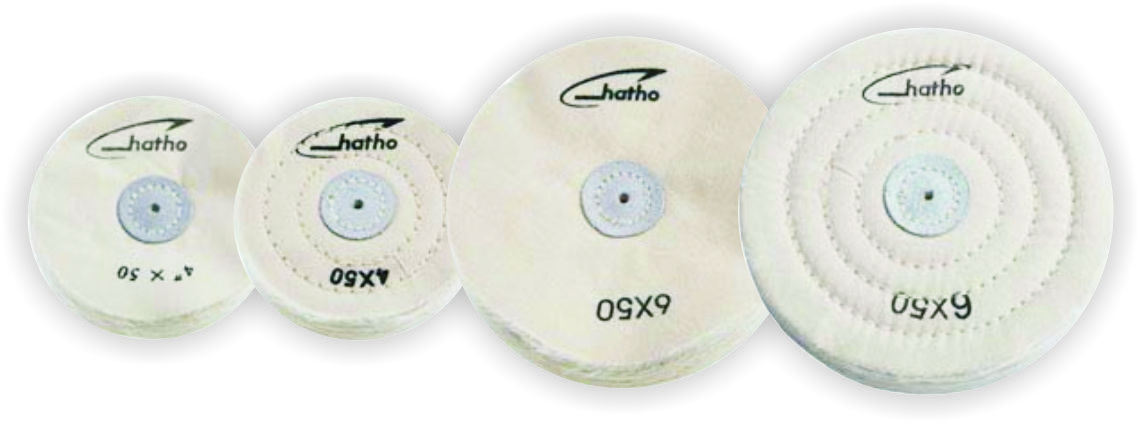

細棉布輪 | 868 4”×50H | 100 | 15 | 50 |
| 868 4”×50HG | 100 | 15 | 50 | ||
| 868 5”×50HG | 125 | 15 | 50 | ||
| 868 6”×50H | 150 | 15 | 50 | ||
| 868 6”×75H | 150 | 15 | 75 | ||
| 868 6”×50HG | 150 | 15 | 50 | ||
| 868 6”×60HG | 150 | 15 | 60 |
